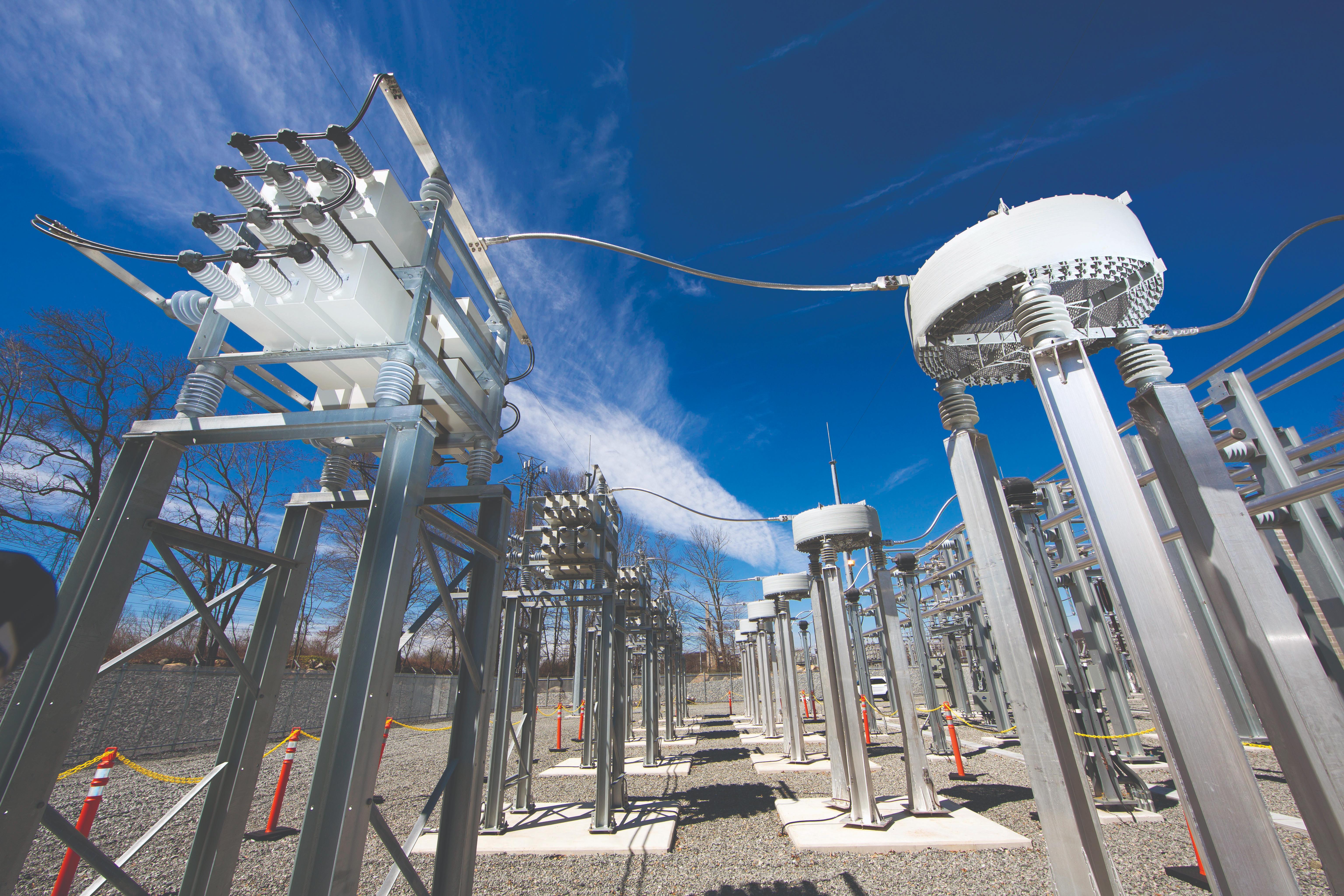

SVC/TCR

Overview

Electrification drives can substantially improve the quality and efficiency of your process or production. Our Dynamic Static VAR Compensators use a proven technology that provides power quality and productivity. Electrification offers both Thyristor Controlled Reactor (TCR) as well as IGBT based Dynamic VAR compensators (D-SVC) for lowering grid interferences due to heavy-duty reactive loads.

Features

System capability

Thyristor-based technology
From 20 MVAr to 600 MVAr
Controls based on industry-standard components
Remote monitoring and diagnostics
Solutions for industrial and grid applications
Containerized options
IT-Security and secure remote access

SVC Thyristor Valves

ETT, electrical-triggered-thyristors
Range up to 600 MVAr
Voltages up to 63 kV
Power circuit consisting of one, two, three or four stacks
Snubbers and divider resistors for thyristor protection
Water-cooled
Easy to maintain
Gate drive units powered from separate power supply increasing operating range

Benefits

Flicker with TCR reduction factor ~2:

Dynamic operation that digitally compensates for voltage fluctuation

Modular design:

Based on former HVDC thyristor valve technology for maximum flexibility and optimized footprint

N+1 redundancy:

Continued operation of one or more thyristors having failed

Cost savings in steel plants:

Refractory wear and electrode consumption reduced, increased EAF production up to ~15%

Safety:

Proven standard in separate building room or E-House

Reliability:

Designed to resist severe transients

Quality:

Local grid strengthening and VAR support for higher productivity and power quality, meeting grid code compliance requirements
