CEME Testing Laboratory

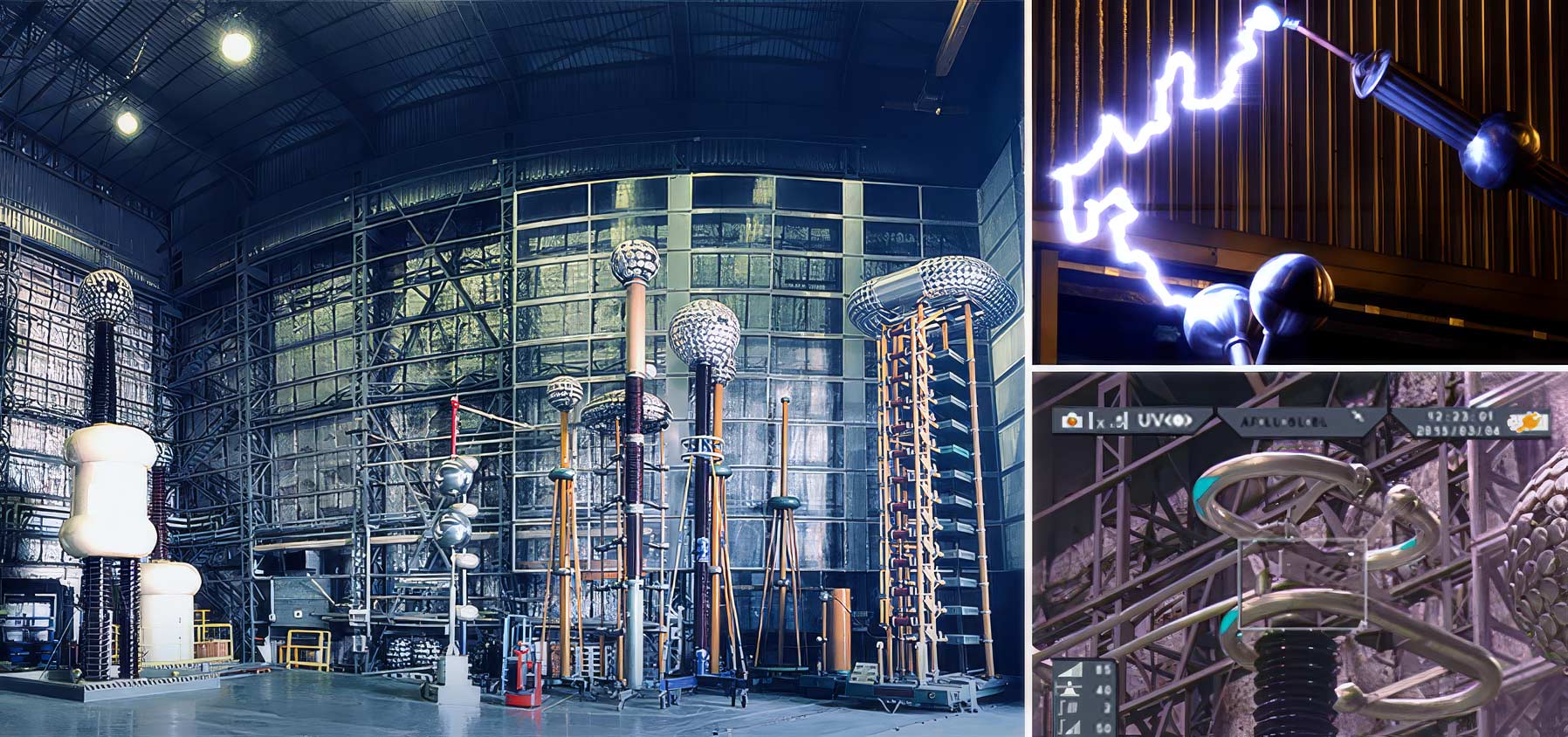

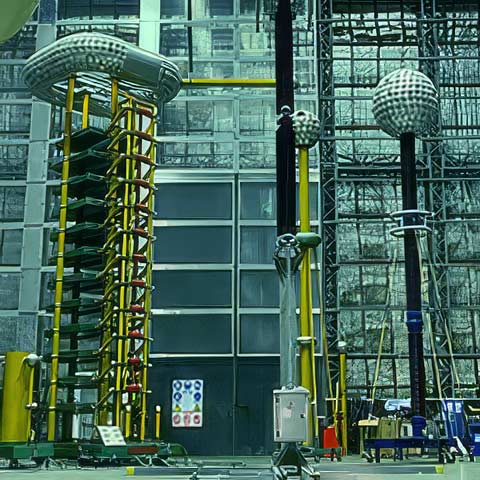

The high voltage testing laboratory offers several possibilities for short- and long-term insulation testing. It is equipped with two cascade power frequency transformers and one impulse generator bank. All tests can be performed also under rainy conditions for outdoor equipment. The laboratory provides the necessary tools to measure Radio Interference Voltages (RIV) as well as Corona discharge.

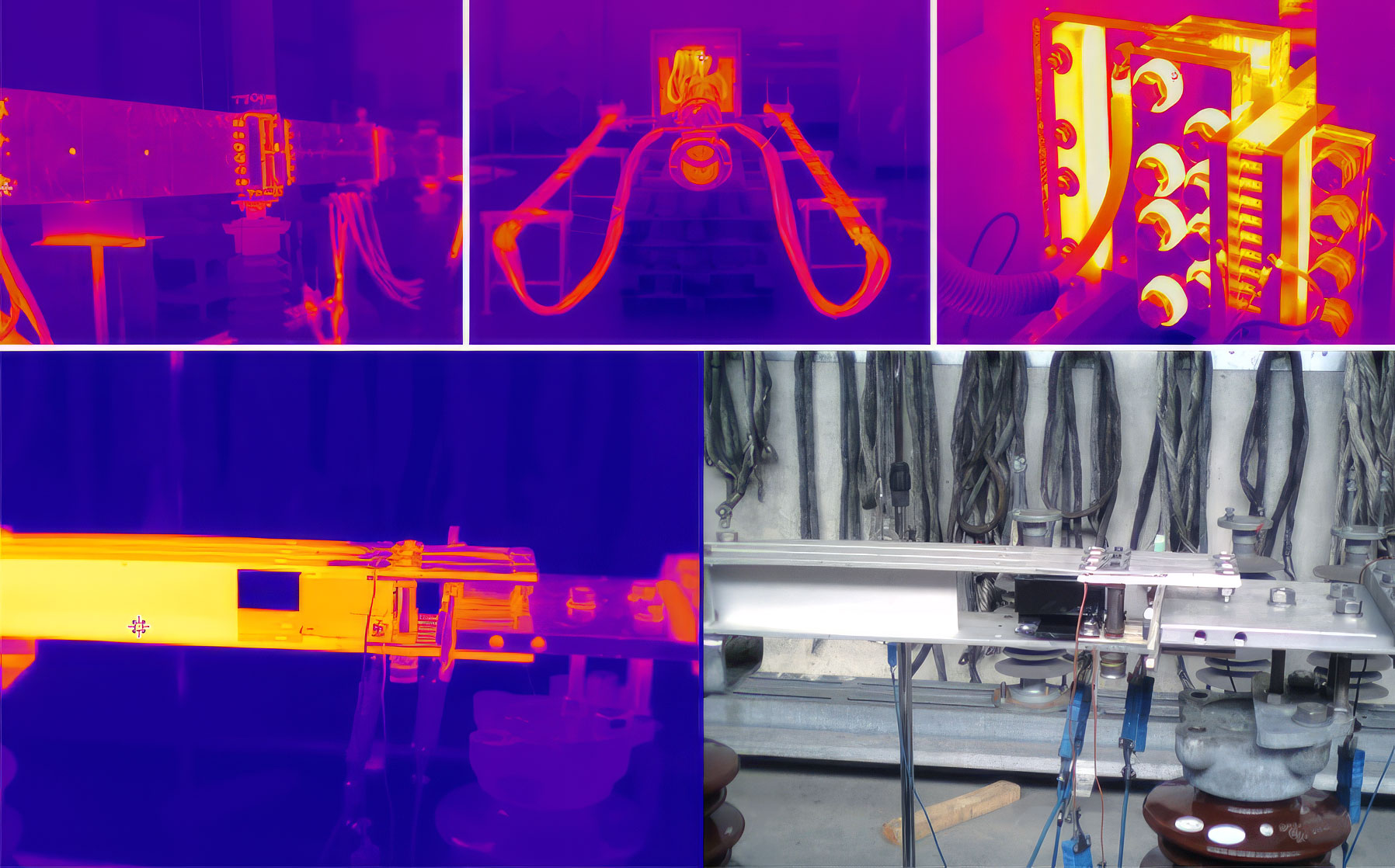

This test laboratory can simulate the impact of the equipment on the environment e. g. the energy losses or radiation under nominal current applications. It is an independent testing room with its own current generator and allows to record up to 60 temperature sensors at the same time.

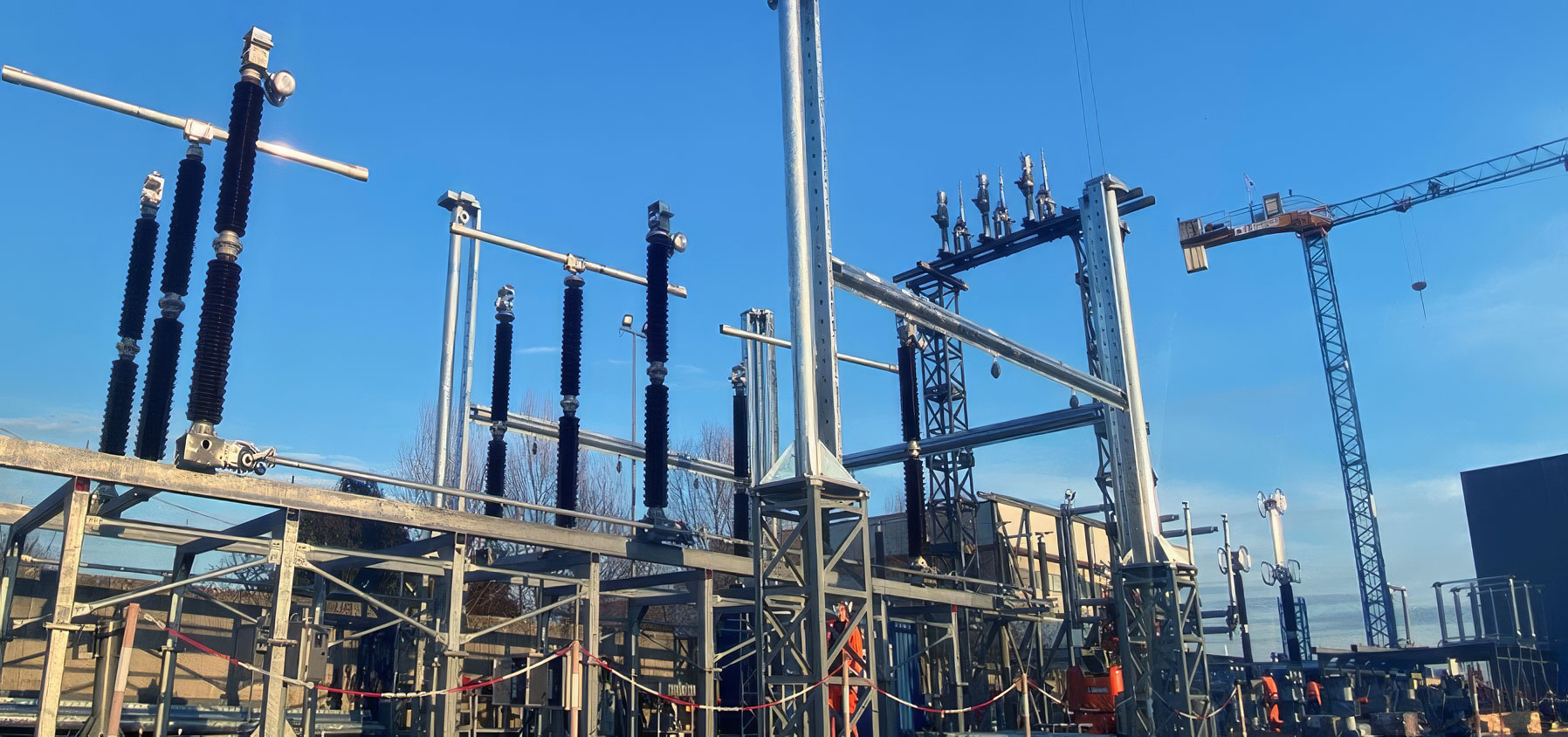

The outdoor Area and the indoor Test are equipped with dedicated rail floor, which allows high flexibility of test setup. The area is equipped with two tower cranes up to 30 m high. The test area is also equipped with three speed dome camera  5 Megapixel 30x zoom and DVR for monitoring long endurance test.

Additionally, the laboratory is equipped for long and short-term monitoring  the test object and its operating mechanism reading and recording torque, current voltage, position.

Load cells and strain gauges custom setup are also available for specific projects.

The power supply in test bench allows up to 4 independent regulable supply voltage AC 50-60 Hz and DC up to 5 kVA power. The test bench can perform terminal load test with a dedicated flexible structure for sample up to 15 m height single pole or three pole set-up. The load can be applied up to 6 points, each point up-to 3 directions.

The test area is also arranged for remote inspection activity thanks to remote camera and gimbal camera.

_{Test Area: 1100 m²
Two Cranes: 1: Height= 25 m ; 30 m arm   ●   2: Height 30 m ; 30 m arm}
