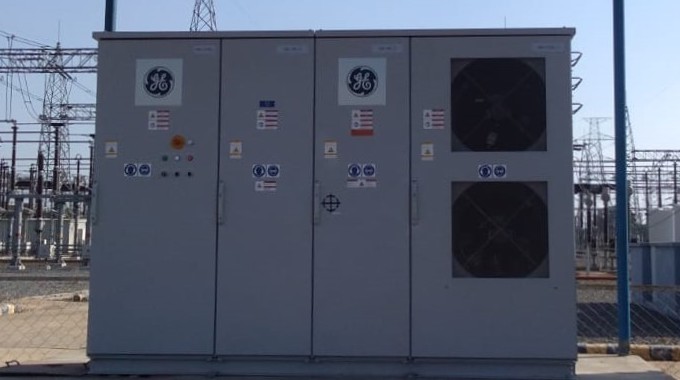

Compensation STATCOM

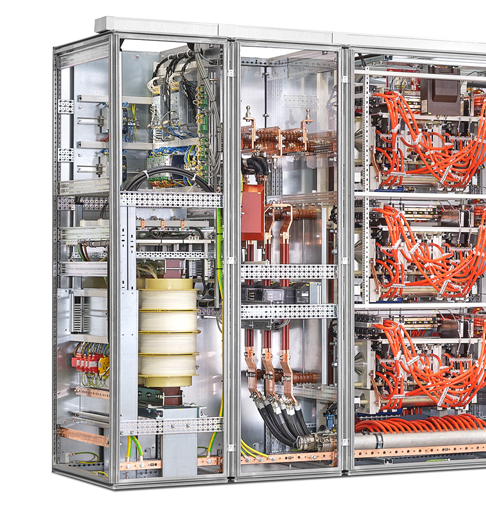

Electrification & Storage’s STATCOMs are based on our proven range of Voltage Source Converters with demonstrated capability in energy and industrial applications such as rail, wind power, mining, melting shops and other industries using IGBT technology.

A STATCOM offers better dynamic performance than an SVC, in particular a faster response time as well as the ability to generate or absorb reactive power when the grid voltage drops or rises, respectively. It therefore helps to increase the reliability and availability of grid operations. A STATCOM is also well suited for industrial applications to reduce voltage flicker e.g. generated by electrical arc furnaces.

Features

STATCOM system capability

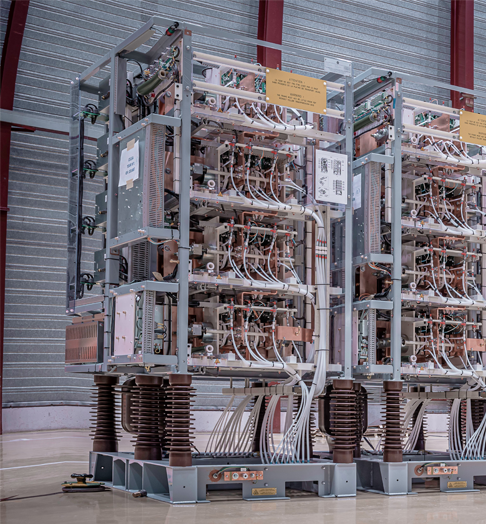

Valve based on IGBT press-pack technology
Power range up to ±300 MVAr
Stepless adjustable cos phi
Transformer to connect to high voltage grid
Air-or water-cooled
Air-conditioned option
Remote monitoring and diagnostics
Controls based on industry standard components
Containerized options
IT-Security and secure remote access

Benefits

Well-proven technology for reliable operation
Local grid strengthening and VAr support for higher productivity and power quality
Easy to integrate into new and existing grid infrastructure
Helps reduce network extension investment costs
Meets grid code compliance requirements
Modular hardware for maximum flexibility and optimized footprint
Low noise emissions –audible and electrical
