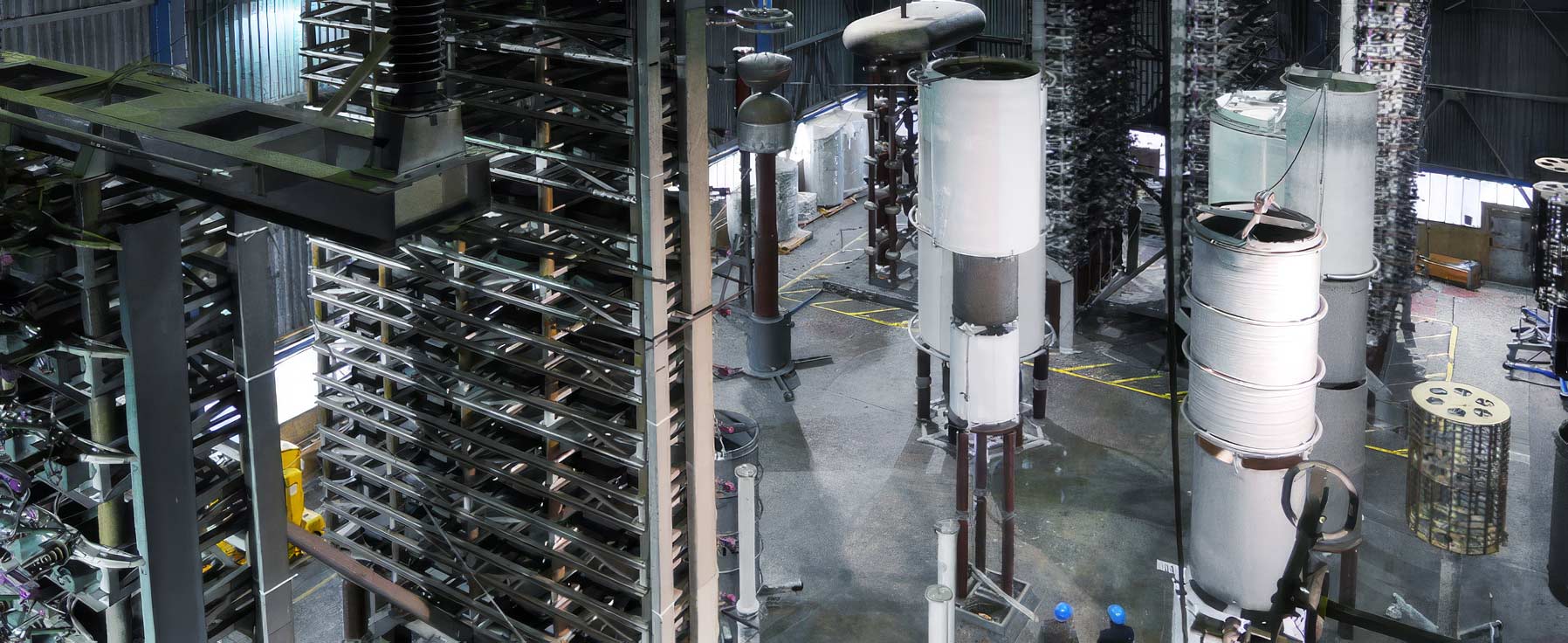

Breadcrumb Home Services HV Switchgear Testing CERDA Test Lab – France CERDA Testing Laboratory Certified and Independent CERDA Testing Laboratory - Certified and Independent Located in Villeurbanne, France, CERDA was established in 1929. CERDA and General Electric (GE Vernova) share the same site, allowing proximity and partnership for research and engineering of new equipment.Quality and ConfidentialityTo demonstrate its committment to quality, neutrality and impartiality, CERDA is recognized and accredited by a number of organizations, and tests according to a variety of standards.COFRAC accredited for testing equipment according to ISO/IEC 17025ASEFA certified to provide a full certification with inspectorESEF and STL national and international association memberships for full netrality and impartialityTests are performed according to IEC, IEEE, EN, VDE, GOST, FURNAS, GB, DL and other standards or customer specifications Download Brochure Request a Test HIGH POWER TESTING High Power Testing The high power testing laboratory at CERDA provides the full short circuit test program according to international and regional standards, and is equipped with modern and reliable measurement tools.High Power Testing PortfolioBasic short circuit test dutiesFull pole 420 kV / 63 kA / 50 HzHalf pole 550 kV / 63 kA / 50 HzShort line fault tests duties, artificial line simulation up to 63 kACapacitive current switching tests, 420 kV / 63 kA / 50 Hz full poleOut of phase making and breaking tests300 kV full pole420 kV and higher in half poleInternal arc tests up to 63 kACommutation switching tests in DCPower supply di/dt measurement using Rogowski coilsArc voltage measurement testsTechnical CapabilitiesMaximum generator output: 2 x 2,500 MVAMaximum short-circuit current (single): 100 kAMaximum voltage for synthetic tests: 1,000 kVFrequency: 50/60 Hz3 x testing halls MEDIUM POWER TESTING Medium Power Testing The medium power station is equipped with two transformers with 23 MVA each, and it can reach up to 46 MVA in combination. This laboratory is able to perform tests from 10 V to 850 V and up to 4,000 A, when coupled with one regulator transformer.Medium Power Testing PortfolioShort time current withstand up to 80 kA rms for3 seconds and 160 kApDisconnector busbar transfer current up to 4,000 AEarthing switch breaking and making of inductive currentsTechnical CapabilitiesTransformers: 2 x 23 MVA, 2,000 VRegulator transformer:10 V to 850 V and up 4,000 APower factor < 0,15 HIGH VOLTAGE TESTING High Voltage Testing The high voltage testing laboratory offers several possibilities for short and long term insulation testing, and is equipped with three power frequency transformers and one impulse generator bank. All tests can be performed also under rainy conditions for outdoor equipment. The laboratory provides the necessary tools to measure Radio Interference Voltages (RIV) as well as Partial Discharge (PD).High Voltage Testing PortfolioAC power frequency testsSwitching impulse testsLightning impulse testsDC dielectric testsCombined voltage tests (BIAS)Chopped wave testsTechnical CapabilitiesPower frequency - up to 1 MV 50 HzLightning impulse - up to 2.5 MV (1.2 μs / 50 μs)Switching impulse - up to 1.6 MV (250 μs / 2,500 μs)Direct voltage - up to 1 MV DCPartial discharge - up to 750 kVRIV testing - up to 550 kV TEMPERATURE RISE TESTING Temperature Rise Testing This test laboratory can simulate the impact of the equipment on the environment e.g. the energy losses or radiation under nominal current applications. It is made of two independent, parallel testing rooms with its own current generator and allows to record up to 200 x PT1000 temperature sensors together. The ambient temperature can be controlled up to 40 °C.Temperature Rise Testing PortfolioShort term temperature rise testsLong term temperature rise testsCalculation of temperature rise values based on the resistance measurement of the current transformersTechnical CapabilitiesTests in AC – Single-Phase (50/60 Hz) - up to 50 kATests in AC – Three-Phase (50/60 Hz) - up to 10 kATests in DC - up to 4 kA CLIMATIC & MECHANICAL TESTING Climatic & Mechanical Testing The climatic chamber is equipped with one room, which can reproduce extreme environmental conditions and temperatures from -60 °C to +60 °C. Additionally the laboratory is equipped for leakage measurement by accumulation for gases such as SF6, CF4 or g3 – green gas for grid.Climatic & Mechanical Testing PortfolioIcing testsMechanical testsLeakage measurementsTechnical CapabilitiesTemperature range: -60 °C to +60° CTesting room dimensions: 11 x 6 x 6.8 m (D x W x H) Contact Us CERDA is located in Villeurbanne, Lyon. Office hours are 8 am to 5 pm weekdays. Availability for our next test slots starting from Q2 2027CERDA Testing Laboratory21, rue Cyprian69 100 Villeurbanne, FranceRequest a Test Download Brochure View location in Google Maps
