Feeder Protection

Advanced protection through flexibility, programmability, and communications for maximum system reliability

Typical applications

Select a typical application to view the associated one line diagram, functions,
and product order codes.

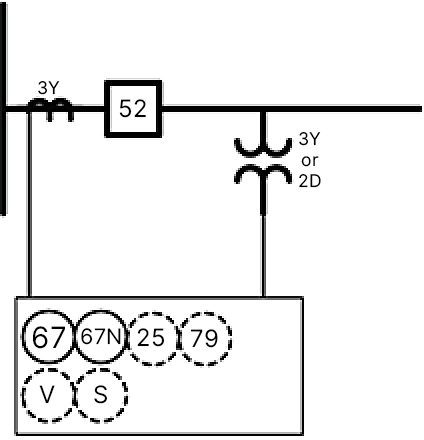

67 Phase directional overcurrent
67N Neutral directional
overcurrent
25 Synchrocheck
79 Reclosing
V, S Voltage and Power metering

Functions	Typical Product Order Code
Typical Functions	760-P5-G5-S5-HI-A20-G-T F650-M-A-D-1-0-HI F60-N00-HCH-F8L-H6P-MXX-PXX-UXX-WXX
+ Additional Functions	Included in typical

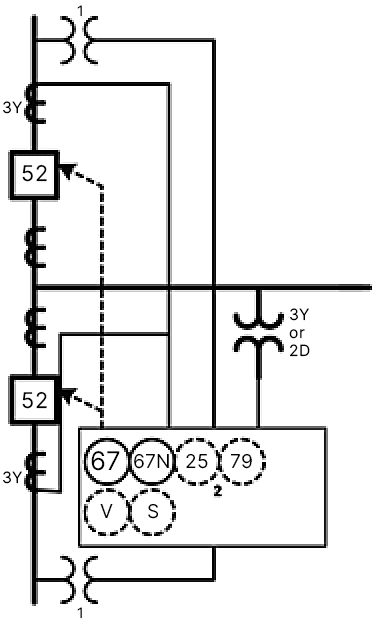

67 Phase directional overcurrent
67N Neutral directional
overcurrent
25 Synchrocheck
79 Reclosing
V, S Voltage and Power metering

Functions	Typical Product Order Code
Typical Functions	760-P5-G5-S5-HI-A20-G-T F650-M-A-D-1-0-HI F60-N00-HCH-F8L-H6P-MXX-PXX-UXX-WXX

50 Phase/Ground IOC
51 Phase/Ground IOC
79 Reclosing

Functions	Typical Product Order Code
Typical Functions	760-P5-G5-S5-HI-A20-G-T F35-N00-HCH-F8L-H6P-MXX-PXX-UXX-WXX 350E-P5-G5-H-S-C-1E-H
